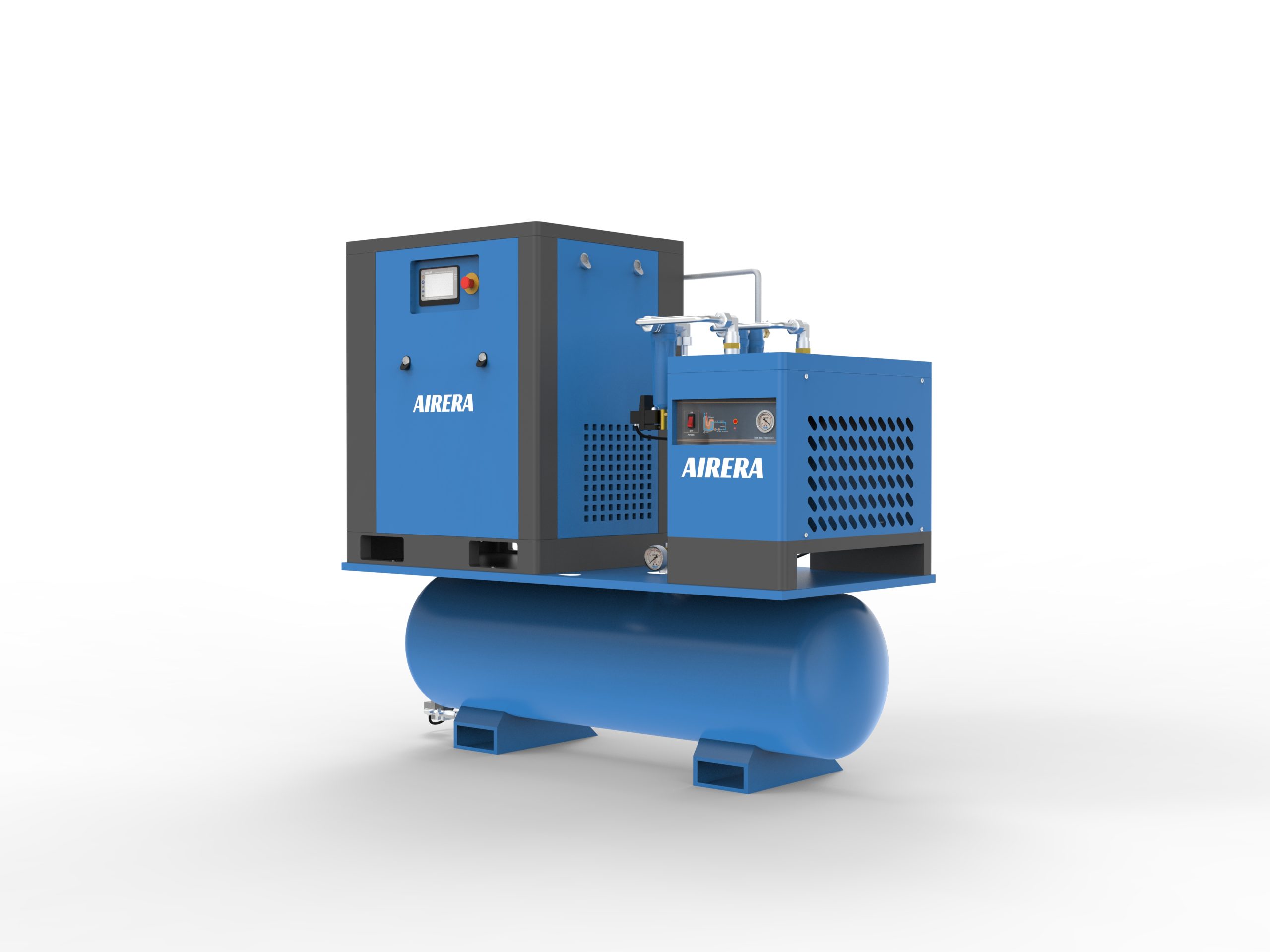

1. Coupling connected air screw compressor with less noise and higher efficiency;
2. Best balance of quality &prices in selection of main parts;
3. Upgraded Air end with SKF 6 bearings;
4. ISO, TUV,GA, SGS certificates performance guaranteed.
Very Competitive Pricing
Low Capital Cost + Low Operating Cost +Exceptional Reliability 8c Efficiency = Economical Cost
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.

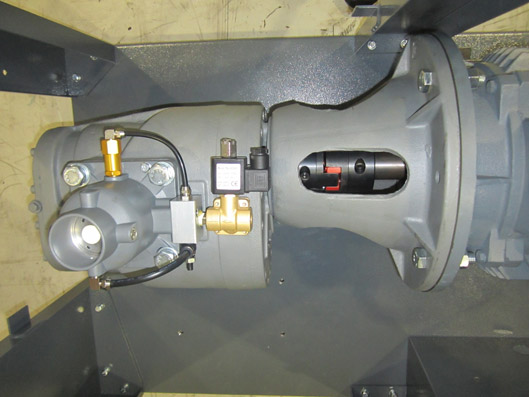

The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
Only electric motors from well-known manufacturers of protection class IP54/IP23 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).
Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.
The amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.
The frequency converter minimises idle times and optimises supply with fluctuating compressed air requirements. Start-up peaks are avoided and the compressor’s delivery rate is controlled continuously – that saves electricity costs! The total costs for your compressed air supply are significantly reduced and investment costs are amortised in the shortest possible time.
| Model | Capacity(m3/min)* | Power(kw) | In/outlet | Noise | Dimension | Weight | Tank(L) | |||
| 8bar | 10bar | 13bar | Motor | Motor(Fan) | dB(A)** | L×W×H in mm | kg | 300 | ||
| AGSD-5.5-C | 0.87 | 0.75 | 0.61 | 5.5 | 0.09 | G1 | 69 | 900×750×900 | 245 | 180 |
| AGSD-7.5-C | 1.2 | 1.04 | 0.9 | 7.5 | 0.09 | G1 | 69 | 900×750×900 | 250 | 180 |
| AGSD-11-C | 1.79 | 1.58 | 1.32 | 11 | 0.18 | G1 | 70 | 950×800×1290 | 370 | 200 |
| AGSD-15-C | 2.4 | 2.15 | 1.84 | 15 | 0.18 | G1 | 70 | 950×800×1290 | 480 | 200 |
| AGSD-18.5-C | 3 | 2.9 | 2.52 | 18.5 | 0.37 | G1 | 71 | 1250×960×1300 | 730 | 300 |
| AGSD-22-C | 3.51 | 3.16 | 2.71 | 22 | 0.37 | G1 | 71 | 1250×960×1300 | 750 | 300 |
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
3. Frequency inverters (optional);
4. 1 year warranty, 3 years warranty for air end.
