RELIABLE AND VERSATILE
Rotorcomp oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.
New ROLLING PROFILE® – ultimate efficiency with reduced noise
Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®
Wide operating pressure range from 5 to 15 barg
High quality manufacturing and assembling – “Made in Germany”
Quality assurance – bench test of every air end before leaving our factory
Easy application selection with our new ROTORCOMP® SIZING AIR software
Highest flexibility for your package design • Suitable for all types of drive motors • Drive options: Belt drive, direct drive, internal gear drive • Base and face-flange mounting
EVO® Range
| Type | Recommended motor | Max. flow rate | Pressure range | Net weight approx. | ||||
| power min. – max. | at 7 barg / 100 psig | min. – max. | ||||||
| kW | hp | m³/min | cfm | barg | psig | kg | lbs | |
| EVO2 | 3 – 11 | 5 – 15 | 1.6 | 60 | 5 – 15 | 70 – 220 | 15 | 44 |
| EVO3 | 5.5 – 18.5 | 10 – 25 | 2.8 | 100 | 5 – 15 | 70 – 220 | 21 | 46 |
| EVO6 | 15 – 37 | 20 – 50 | 5.5 | 200 | 5 – 15 | 70 – 220 | 45 | 99 |
| EVO9 | 22 – 55 | 30 – 75 | 8.4 | 300 | 5 – 15 | 70 – 220 | 68 | 150 |
| EVO15 | 45 – 90 | 60 – 125 | 14.4 | 510 | 5 – 15 | 70 – 220 | 126 | 278 |

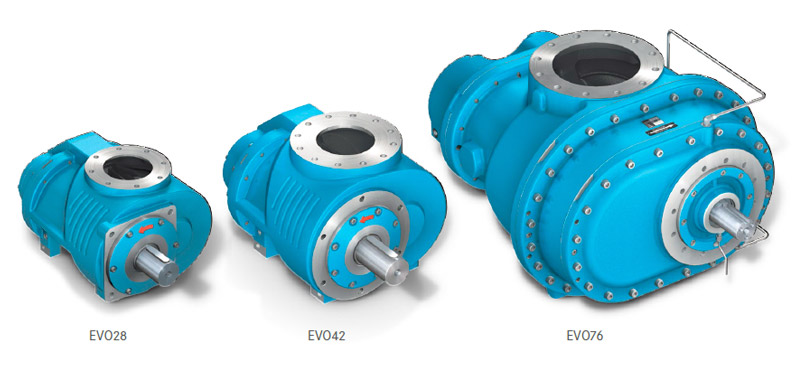

| EVO28 | 75 – 160 | 100 – 200 | 26 | 920 | 5 – 15 | 70 – 220 | 269 | 593 |
| EVO42 | 132 - 250 | 175 - 340 | 42 | 1485 | 5 – 15 | 70 - 220 | 474 | 1045 |

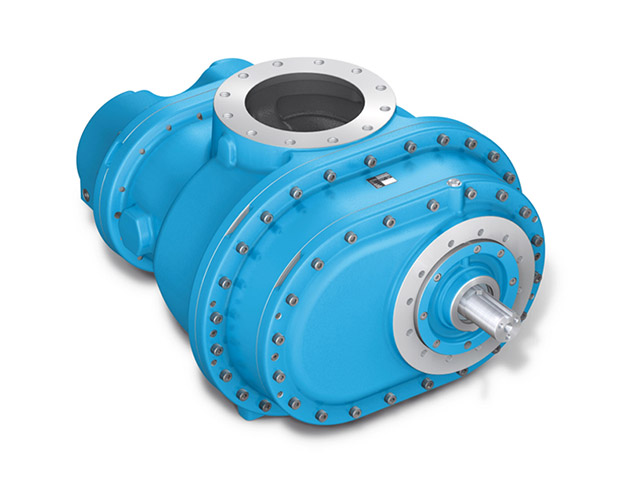

| EVO76 | 160 - 540 | 214 - 725 | 76 | 2678 | 3,5 - 17 | 50 - 250 | 1250 | 2754 |
