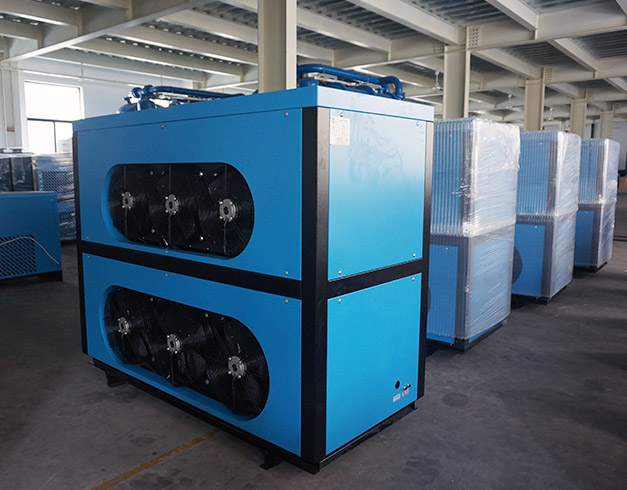

Compressor dryer/Air compressor dryer/refrigerated compressed air dryer ISO, CE certificates. 1.2m3/min~400m3/min customized 30-40bar pressure with cheaper price.
Capacity: 1.2m3/min~400m3/min
Working Pressure: ≤13bar
Max.inlet temp: 82°C
Max Ambient Temp:50°C
Min.Ambient Temp: 5°C
Refrigerant: R22, R407C,R134A,R410A
Cooling type: Air-cooled&Water-cooled
Dew Point: 2°C ~10°C

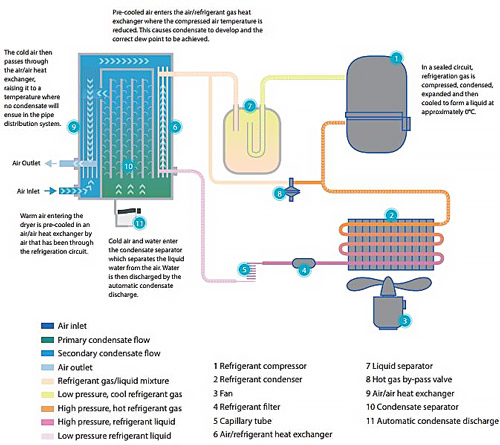

1. Refrigerated dryer adopts filtering liquid separator, American HANKISON filter, Japanese Panasonic and South Korean LG refrigeration compressor to maintain durability and stability. The gas-liquid separation effect completely avoids the secondary evaporation of water, and cold drying is an important role in ensuring the drying effect. It is more efficient than cyclone separation, with a separation efficiency of 99.99%.
2. The internal working pressure of galvanized copper piping system is 0.3-4.5MPa.
3. Made of stainless steel tube, suitable for pharmaceutical, food industry, acid and alkali corrosion resistance.
4. As a reliable compressor dryer manufacturer, the air heat exchanger adopts the inner and outer walls of corrugated copper tubes to improve the utilization rate of cooling capacity, countercurrent structure, good return water temperature and no condensation.

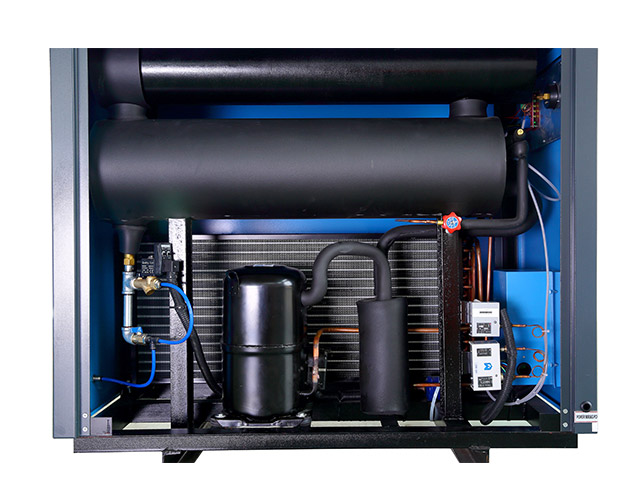

5. The evaporator is processed with thin-walled copper tube, with hydrophilic aluminum fins, and spoiler structure to improve the heat transfer efficiency of our refrigerated air dryer.

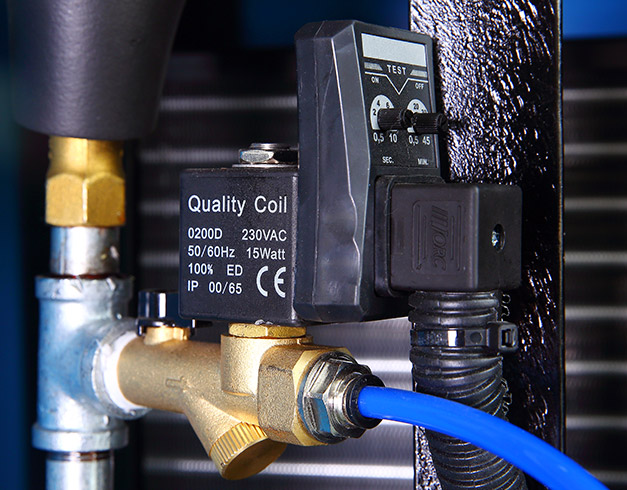

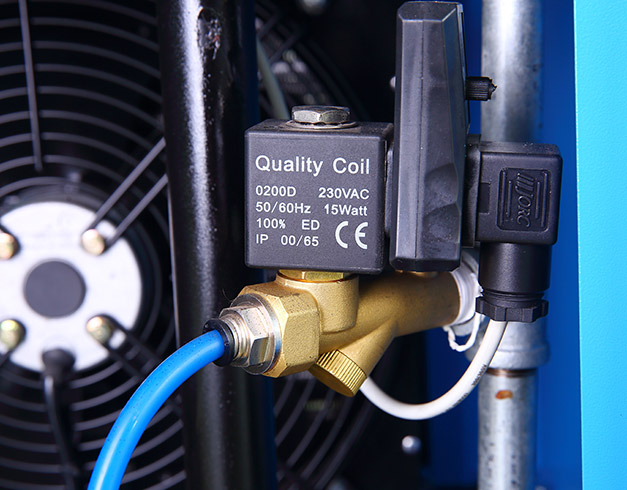

6. The sewage system of the refrigerated compressed air dryer is optimized. The cold-drying structure adopts a three-level or more drainage structure, which can effectively discharge a large amount of condensed water and oil pollution in a timely and effective manner, thereby ensuring the clean and dry air of the system and reducing the system load.
| Model | Cpacity | Power Kw | Voltage | connection | Dimension | Weight Kg |
| m3/min | V/50Hz | L×W×H | ||||
| HDR-10HP | 1.2 | 0.85 | 220 | Rc1″ | 630×450×640 | 50 |
| HDR-20HP | 2.4 | 1 | 220 | Rc1″ | 700×450×830 | 80 |
| HDR-30HP | 3.8 | 1.25 | 220 | Rc1.5″ | 850×500×920 | 105 |
| HDR-50HP | 6.5 | 1.5 | 220 | Rc1.5″ | 880×550×1020 | 150 |
| HDR-60HP | 8.5 | 1.8 | 220 | Rc1.5″ | 880×550×1020 | 160 |

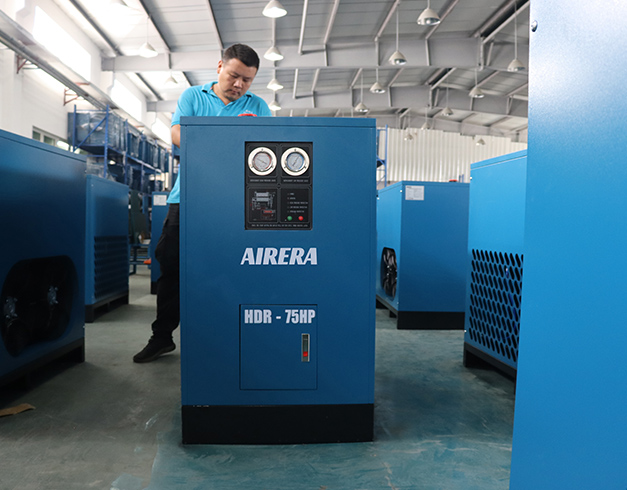

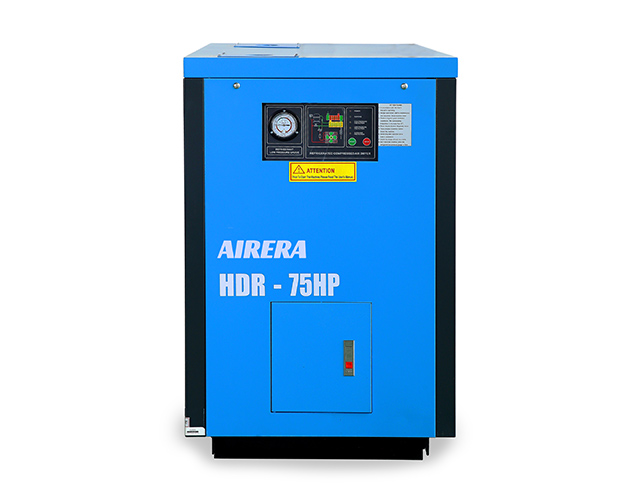

| HDR-75HP | 10.7 | 2.5 | 380 | Rc2″ | 1180×670×1080 | 240 |
| HDR-100HP | 13.5 | 2.5 | 380 | Rc2″ | 1180×670×1080 | 260 |
| HDR-125HP | 18 | 3 | 380 | DN65 | 1360×710×1220 | 310 |
| HDR-150HP | 25 | 4 | 380 | DN80 | 1360×710×1220 | 400 |
| HDR-200HP | 28 | 4.5 | 380 | DN80 | 1650×750×1290 | 450 |
| HDR-300HP | 35 | 6.5 | 380 | DN100 | 1670×750×1675 | 780 |
| HDR-350HP | 426 | 8.8 | 380 | DN100 | 2000×950×1740 | 820 |
| HDR-400HP | 55 | 10.2 | 380 | DN125 | 2350×1050×1910 | 900 |
| HDR-450HP | 65 | 13 | 380 | DN125 | 2550×1100×1940 | 1100 |
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
3. 1 year warranty, 2 years warranty for refrigerated compressor
