Line filters

Send Email Inquiry Now

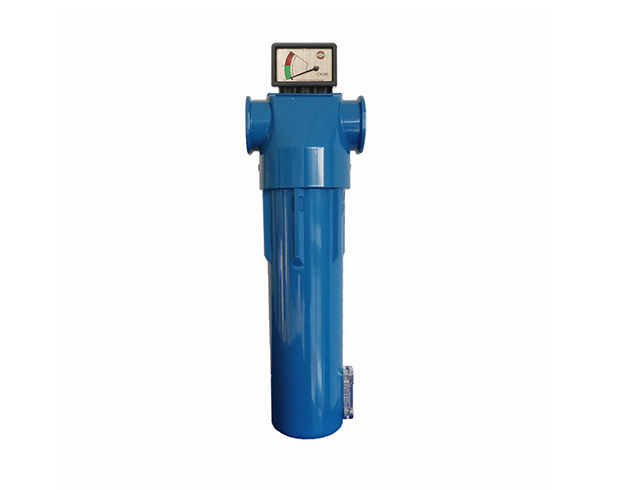

High-efficient line Filters

The High-efficient Pipe Air filter cartridges are designed to remove particles,water, oil vapours, taste and odours from compressed air.

High-efficient Imported filter elements

Key benefits:

Max operating pressure 20 bar(290psi)

Operating temperature range:1.5 to 85 ° C (35 to 190 ° F)

  • Ensuring greater efficiency and reliability

    Less wear of distribution network and equipment

    Simple design offering excellent performance

    Decreased maintenance costs

    Increased cost effectiveness

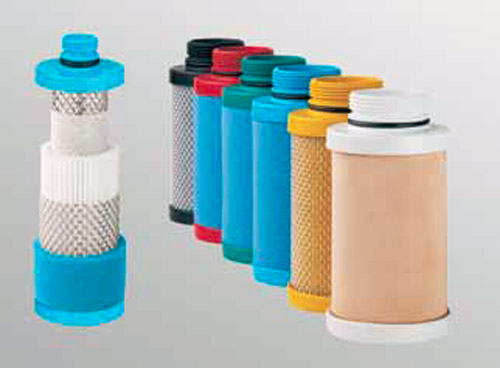

    Different cartridges with specific filtration qualities

The filters are available for a wide range of industrial applications, from the pharmaceutical and food industry to the chemical and packaging industry, as well as instrument and control systems. They are all easy to maintain and ensure optimal productivity with fewer breakdowns.

Main features

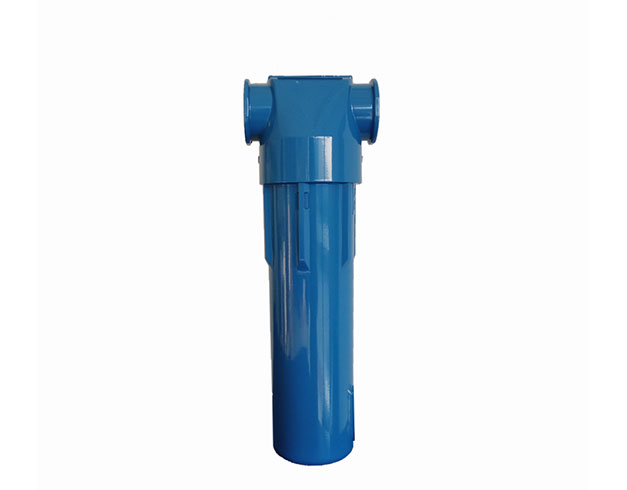

  • The shell is made of die-cast aluminum, with precise structure and long service life. All shells are cleaned, degreasing and special anti-corrosion treatment before spraying to improve the resistance.

  • Adopt screwless design/ the bayonet design at the top of the filter element saves more than the general screw design More installation space / and very easy to dismantle

  • Equipped with leak detection equipment: Air leakage from the filter is a loss of energy, and many minor air leaks are not easy to detect Now, HDR ultra-clean precision filter is 100% rigorously tested for leak detection to ensure that each product is absolutely free of light

  • The company has a special laboratory and introduces advanced German inspection equipment, and the product testing is in line with ISO8573-1:2015(E), TUV, CE and other international standards

  • Equipped with a differential pressure gauge or differential pressure indicator, it can simply measure differential pressure and display premature filter element clogging, thus avoiding excessive pressure differential or abnormal filter element clogging

  • The core accessory of the HDR series ultra-clean precision filter, a liquid level gauge, is used to detect whether the drain is blocked, do maintenance work in advance, and protect the downstream equipment from pollution.

  • The uniquely designed ball valve is equipped with a sealing ring, which is simple and convenient to install without the need for raw material tape.

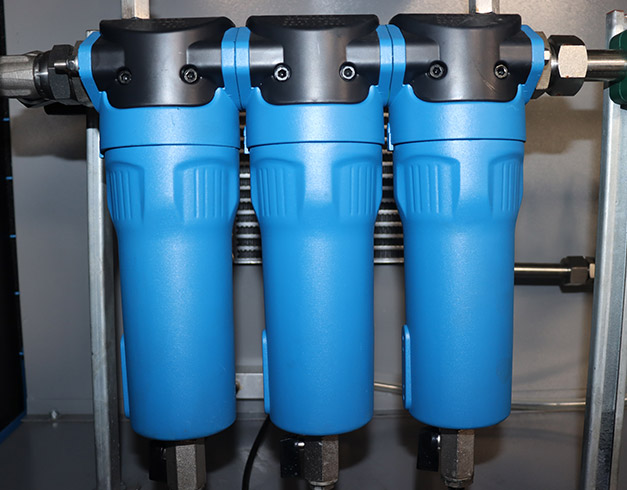

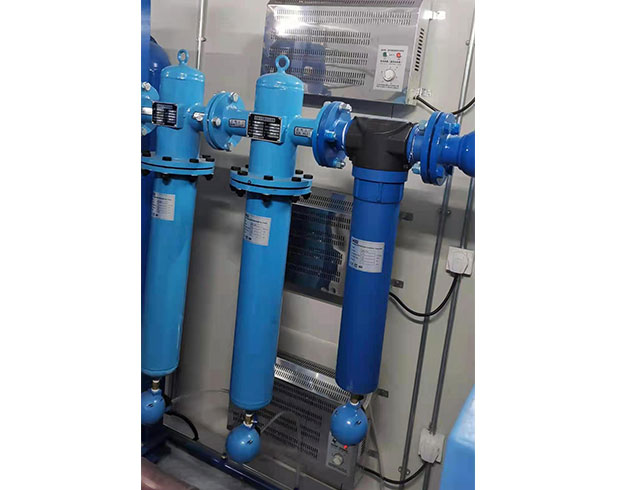

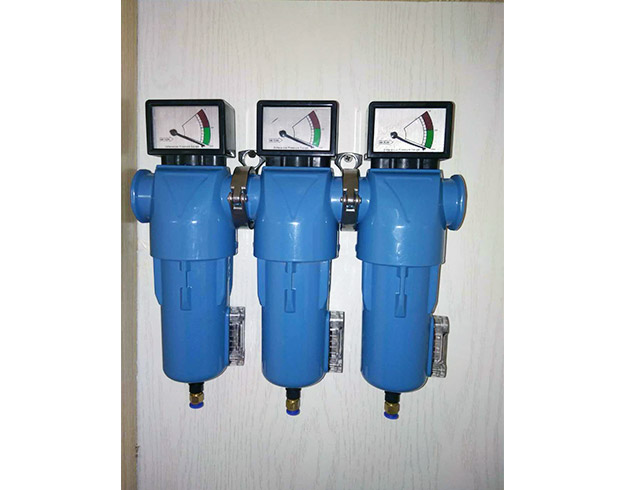

  • Serial combinations

    In order to meet more usage requirements/ We have designed a series shortcut combination/ Applicable

    Various laboratory or laser cutting, advanced spraying, bottle blowing and other industries. can be directly connected in series

    With/without additional threads.

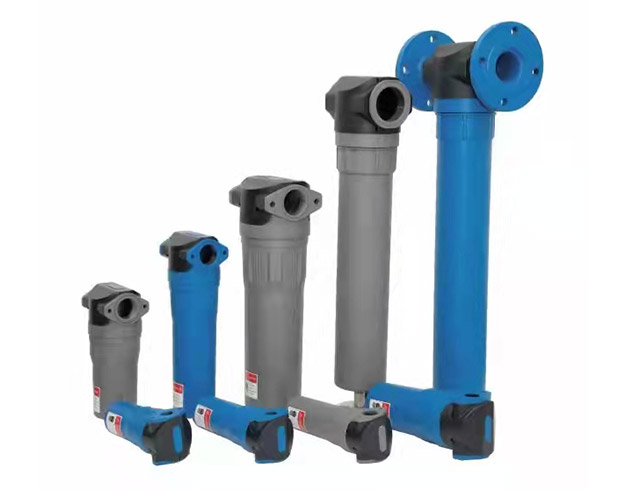

Pipe Filter Technical Data:

Model Capacity(m3/min) Air Connection Dimension(L*W*H) Weight matching compressor
HDR-015 1.5 G1/2” 105×76×250 2 7.5KW
HDR-024 2.4 G1/2” 105×76×250 2 11kw
HDR-035 3.5 G3/4” 105×76×250 3 15kw/18.5kw
HDR-060 6 G1” 105×76×250 4 22kw/30kw
HDR-090 9 G1-1/2” 105×76×310 5 37kw/45kw
HDR-120 12 G1-1/2” 137×99×400 10 55kw/75kw
HDR-150 15 G1-1/2” 137×108×750 12 90KW
HDR-200 20 G2” 148×125×920 13 110kw/132kw
HDR-240 24 G2” 1355×135×1113 15 160kw
HDR-360 36 DN150 475×135×1265 137 185KW/200KW
HDR-450 45 DN150 475×175×1315 140 250KW
HDR-600 60 DN150 525×175×1315 180 315KW
HDR-900 90 DN200 590×175×1350 200 355kw/400kw
HDR-1200 120 DN250 660×175×1350 250 450/500KW
HDR-1500 150 DN300 700×189×1350 265 560/600KW
HDR-1800 180 DN350 980×235×1350 300 650/750KW

The filter level：

Q-grade filtration precision: 3 μrn, oil content: 3ppm

P-grade filtration precision: 1μm, oil content: 1ppm

S-grade filtration precision: 0,0 1p pm, oil content, 0.01ppm

C (activated carbon) grade filtration accuracy: 0.001μm / oil content: 0.003ppm
