Purge Air:≤4%-15%
Desiccant:High-eficient Activated Aluminum & Molecular Siere
Working Pressure:6-10Bar
Working Period: T=4 -180 Mins
Inlet Oil Content:≤0.01ppm
Inlet Temp:0°C- 45 °C
Pressure Dew Point: -20°C~ -70°C

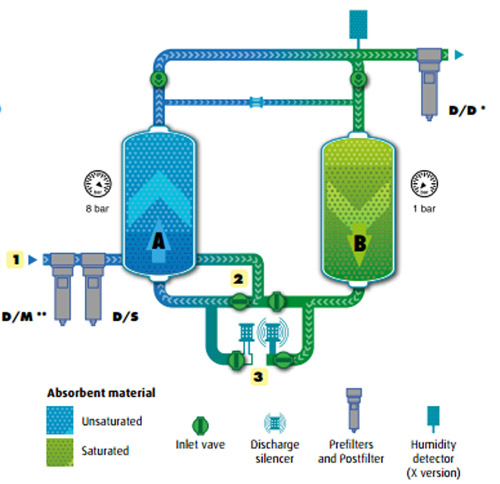

Wet air from the compressor passes through the inlet filters （ 1 ）which remove the oil.The air then enters into tower A. The desiccant in tower A adsorbs the water vapor molecules. After a fixed(E) or variable(x) time the inlet valve(2) devilates the air flow from tower A to tower B, which then becomes the operational tower.
During the drying phase in tower A, some dry is deviated into the top 0f tower B.where it extracts the trapped vapor from the desiccant matenal. During this phase，tower B is open to the atmosphere, allowing the purge air to expand.The silencers(3) on the outlet ensure quiet operation.
Once regeneratgion has taken place and tower B is pressurized, the inlet valve(2) changes the air flow again.
On DB05-6 the outlet filter is built inside the desiccant cartridge
Recommended but not included on DB 05-64.
Longer life span of your equipment and distribution network due to less wear
Greater productivity and lower maintenance costs thanks to less breakdowns
Multiport inlet and outlet which ensures fast and easy installation
Higher final product quality
Increased reliability and reduced risk for leaks
Energy savings with lower pressure drops
Pressure dew point sensor

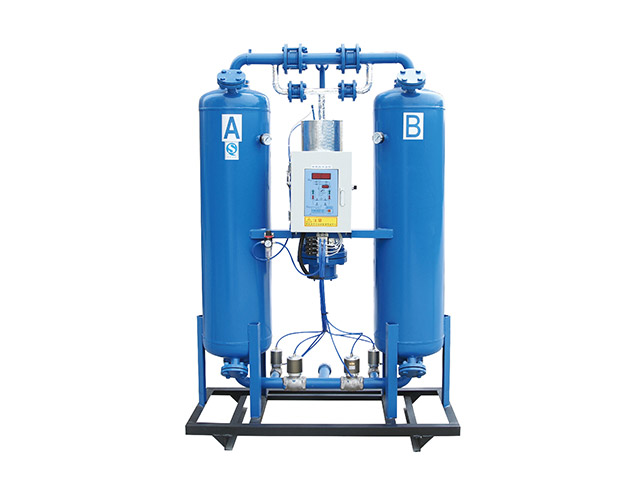

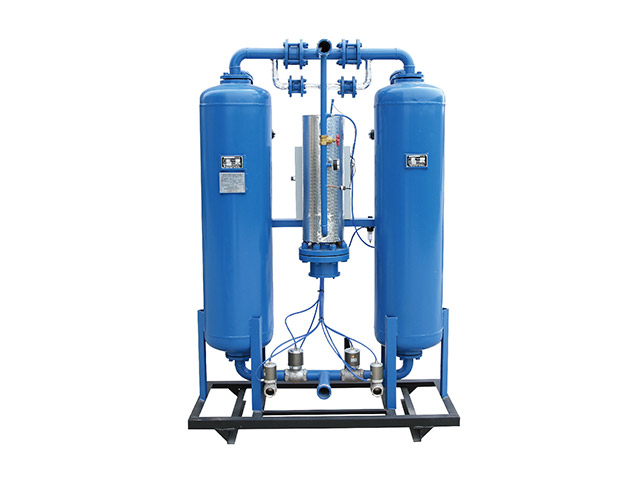

Micro heat regenerative adsorption pressure desiccant dryer with no heat regeneration principle is basically the same, the difference is that it used to regenerate the low-pressure dry air before re-entering the regeneration tower after receipt of the desiccant dehumidification in the structure increased heating device, on the increase in the regeneration process receipt and cold blowing processes. slightly hot regenerated adsorption dryer advantage of less energy waste, only 6%. Switching cycle is long and less engine wear, improved equipment reliability. It is the final product gas dryness ratio heatless with even better.
| Model | Cpacity | Power Kw | Voltage | connection | Dimension | Weight Kg |
| m3/min | V/50Hz | L×W×H | ||||
| HDR-10XF | 1.2 | 0.85 | 380 | ZG1″ | 800×400×1360 | 120 |
| HDR-20XF | 2.4 | 1.0 | 380 | ZG1″ | 800×400×1460 | 180 |
| HDR-30XF | 3.8 | 1.25 | 380 | ZG1.5″ | 1000×450×1600 | 270 |
| HDR-60XF | 6.5 | 1.5 | 380 | ZG1.5″ | 1200×500×1950 | 400 |
| HDR-75XF | 8.5 | 1.8 | 380 | ZG1.5″″ | 1400×600×2000 | 510 |
| HDR-100XF | 10.7 | 2.5 | 380 | ZG2″ | 1400×600×2090 | 700 |
| HDR-150XF | 13.5 | 2.5 | 380 | ZG2″ | 1400×600×2140 | 740 |
| HDR-200XF | 18 | 3.0 | 380 | DN65 | 1400×600×2200 | 780 |
| HDR-250XF | 25 | 4.0 | 380 | DN80 | 1670×650×2435 | 1180 |
| HDR-300XF | 35 | 6.5 | 380 | DN100 | 1670×650×2566 | 1760 |
| HDR-350XF | 45 | 8.8 | 380 | DN100 | 1750×750×2700 | 2200 |
| HDR-400XF | 55 | 10.2 | 380 | DN125 | 1800×750×2755 | 2600 |
| HDR-450XF | 65 | 13 | 380 | DN125 | 1900×700×3070 | 3100 |
| HDR-500XF | 85 | 13 | 380 | DN150 | 2620×1120×3070 | 4100 |
| HDR-550XF | 110 | 13 | 380 | DN150 | 3100×1650×3200 | 5200 |
| HDR-600XF | 160 | 13 | 380 | DN200 | 3240×1770×3190 | 6000 |
