Double-stage diesel portable compressor

Send Email Inquiry Now

Blast hole drilling

From the mining of minerals, limestone to metal minerals, blast hole drilling construction is mostly used in harsh and remote areas. Such harsh working environments require robust and stable equipment to perform tasks.

AIRERA diesel portable air compressor is equipped with a low-temperature and high-altitude start-up package, stronger compressor frame and dust & water-proof equipment, anti-corrosion painting and the large-capacity diesel tank can meet the needs of uninterrupted long-term operation.

Application: Suitable for various types of mineral mining, heat& geothermal drilling projects. Drilling in mines to mine small boulders, and then obtain valuable minerals or process them into smaller particles or powders to make cement, etc., which are widely used in iron mine, copper mine, gold mine, or cement factory.

Product design features:

  • 1. Two-stage helical rotor patent, the rotor linearity is 5:6, and the energy consumption is reduced by 8%; there is no speed-up gear in the middle, which has higher efficiency and better reliability. Long, the design maximum pressure can reach 40bar.

  • 2. Two-stage compression; Select famous engines such as Deutz, Cummins, Yuchai World, etc.

  • 3.SKF bearing, direct drive, noiseless gear, design life more than 15 years;

  • 4. Good adaptability, it can automatically adjust the diesel oil valve (displacement volume) according to the gas consumption, without wasting a drop of diesel. This is equivalent to the frequency conversion control of the electric screw machine.

  • 5. The patented cyclone air pre-filter increases the number of air filter replacements by 5 times. The cyclone air filter filters residual dust and protects the compressor, and the filter element provides safe air filter maintenance without stopping the compressor. The system can operate continuously in desert conditions or heavy dust conditions. Accuracy up to 8μ. Compressed air triple oil cooling system, always saves no more than 3 ppm of oil in the exhaust compressed air.

  • 6. Automatic fuel supply for a long time - The large capacity fuel tank (up to 708 liters) enables large air compressors to work in remote areas without refueling.

  • 7. Versatile - suitable for use in all weather conditions and temperatures between -25°C/-13°F and +50°C/+122°F.

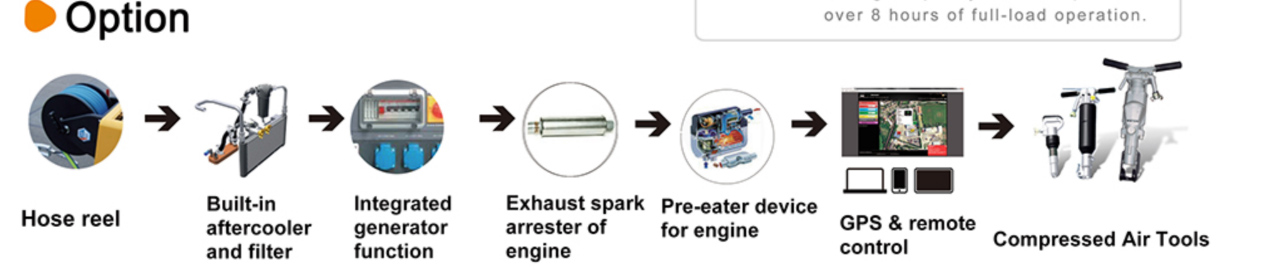

  • 8. Additional coolers, mufflers, low temperature starting systems, air tools, etc. (optional)

Technical Parameters

Model Working pressure Capacity Engine Dimension
bar psi m³/min cfm model kW hp mm
CALT -12/15 15 218 12 430 Yuchai 118 160 3980*1800*2650
CALT -15/16 16 232 15 540 Yuchai 140 190 3980*1800*2650
CALT -15/16C 16 232 15 540 Cummins 132 180 3980*1800*2650
CALT -17/17 17 247 17 612 Yuchai 162 220 3980*1800*2650
CALT -17/17C 17 247 17 612 Cummins 155 210 3980*1800*2650
CALT -18/20 20 290 18 648 Yuchai 191 260 3980*1800*2650
CALT -18/20C 20 290 18 648 Cummins 6CTA8.3-C260 191 260 3980*1800*2650
CALT -19.5/19C 19 276 19.5 696 Cummins 6CTA8.3-C260 195 260
CALT -19/21-21/18C 21 305 19 684 Cummins 191 260 4600*1950*2850
CALT -22/20C 20 290 22 786 Cummins 6CTA8.9-C325 240 325 4600*1950*2850
CALT -23/23-25/18C 23 334 23 828 Cummins 240 325
CALT -27/23-29/18 23 334 27 972 Yuchai 294 400
CALT -25/23-27/18C 23 334 25 900 Cummins 265 360
CALT -26/25C 25 363 26 928 Cummins QSZ13-C500 368 500 4700*2100*2500
CALT -21/35C 35 508 21 750
CALT -26/25(21/35) 25(35) 363(508) 26(21) 929(750)
CALT -33/25C 25 363 33 1179 Cummins QSZ13-C550 405 550
CALT -26/35C 35 508 26 929
CALT -29/25C 25 363 39 1393 Cummins KTA19-P630 or Caterpillar C-18ACERT 463 630
CALT -33/35C 35 508 33 1179
CALT-39/25(33/35)K 25(35) 363(508) 39(33) 1393(1179)

NOTE: The model is represented as two front *, its length dimensions include mop

Two-stage air compressors are widely used in mining, water conservancy, transportation, shipbuilding, urban construction, energy, military and other industries that need to drill deep holes.

Airera high pressure double stage portable compressor comes into being. With multiple pressure and temperature sensors are set up in the unit to monitor the relevant parameters, and calculate and execute a reasonable fuel injection amount through the engine ECU and controller, so as to accurately guarantee the gas production and high wind speed at all times. pressure to ensure high penetration of the rig.

The higher the pressure, the faster the speed, while the high flow rate ensures large drilling diameter formation. In the long-term high temperature test, Fidelity equipment maintains consistent and stable performance, providing reliable, unchanged, constant productivity.
