Tank-mounted compressor AGSD-E series

Send Email Inquiry Now

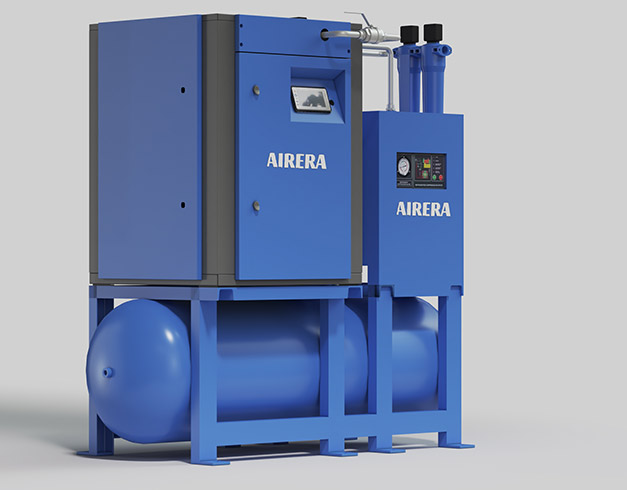

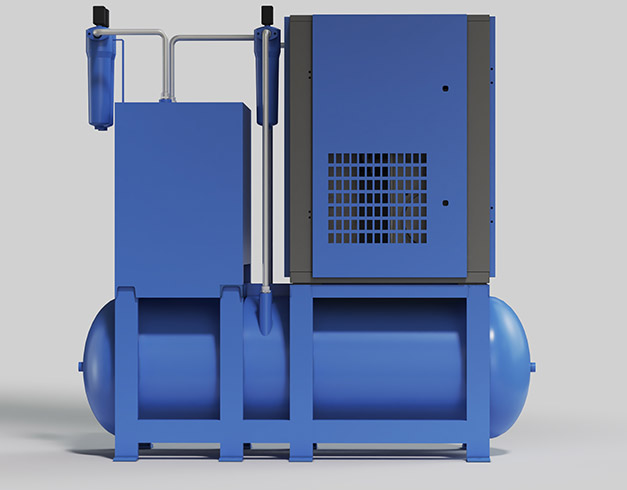

Tank mounted air screw compressor

Historical well-known manufacturer producing quality screw compressor, high pressure compressor in ISO,TUV,CE certificates with good price, 5 years warranty, patented unique design, more energy-saving , reliable compressor system for all kinds of projects.

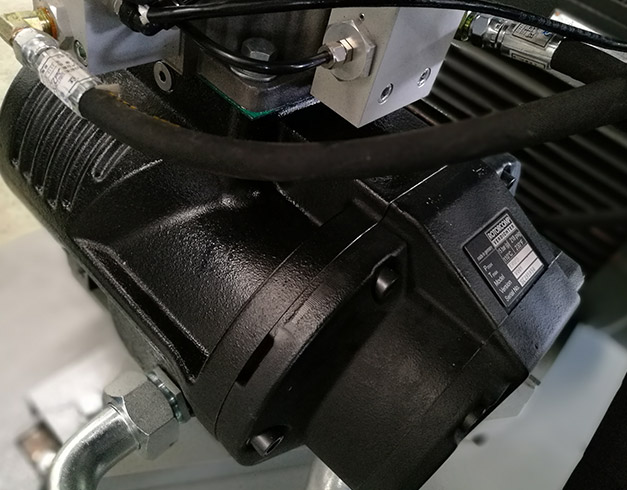

The AGSD integrated compressor uses EVO series German main engine compressor

Advantages of our new EVO® technology

New ROLLING PROFILE® – ultimate efficiency with reduced noise

Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®

Wide operating pressure range from 5 to 15 barg

High manufacturer assembling – "Made in Germany"

Quality assurance – bench test of every air end before leaving our factory

Easy application selection with our new ROTORCOMP® SIZING AIR Software

Highest flexibility for your package design

Suitable for all types of motors

The features of EVO air end:

Ultimate efficiency and reduced noise through

High volumetric output due to

Reduced internal leakage

Thermally optimized oil injection system

Improved suction port efficiency giving reduced internal losses

Optimized torque characteristics and reduced internal friction

Improved outlet port with lower pressure losses

Reduced noise and low vibration due to

Smooth rolling of the rotors with new ROLLING PROFILE®

Optimized outlet port

World-leading Rotorcomp Screw Air Compressor in unique design, better performance with the better price, good for extremely working environment with ISO,CE, TUV certificates.

Advantages of LGSD Series Screw Compressor:

1. World-leading Made in Germany Rotorcomp screw air end in 5 years warranty.
2. Extraordinary cooling system, 20-30% cooling performance than the old models, and friendly to do maintain job to cooler and cooling fan.
3. Advanced Intelligent colorful touchable control system for simple& easy operation.

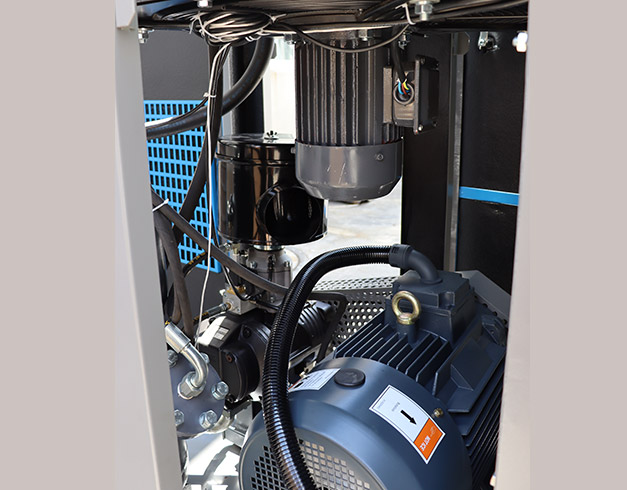

4. Higher efficient energy-saving motor in SF.1.2.IP55, IE3 CE&MEPS to increase 15% efficiency.
5. Unique driving guard system to increase the lifespan of driving system.

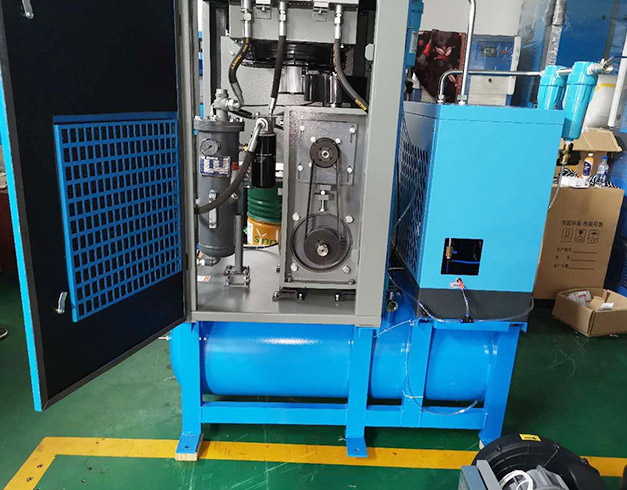

6. The patented OPTI belt transmission, this unique design to ensure the belt tensioning force by the weight of the motor and start Torque, the design service life is up to 25,000 hours, transmission efficiency can be as high as above 98%.

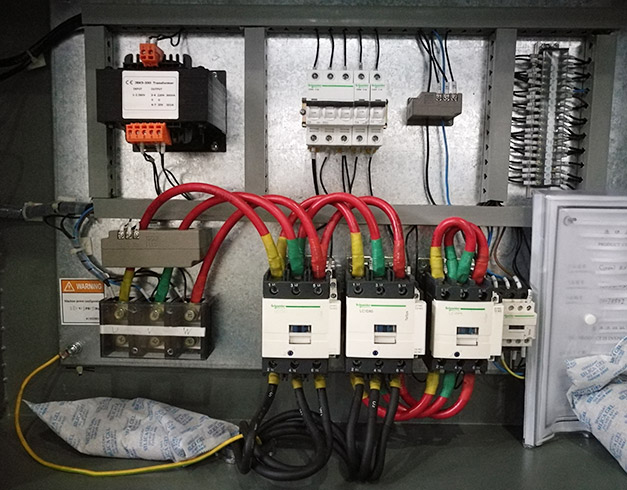

7. Pick-up French Schneider white-color high-end contractor to keep more durable in extreme environment.
8. Select high-end air dryer and line filters reach TUV,CE standards to keep excellent purity of discharging air, reach 0.001ppm.

Model	Capacity(m3/min)*				Power(kw)		In/outlet	Noise	Dimension	Weight	Tank(L)
Model	8bar	10bar	13bar	15bar	Motor	Motor(Fan)	In/outlet	dB(A)**	L×W×H in mm	kg	300
AGSD-5.5	0.87	0.75	0.61	0.53	5.5	0.09	G1	69	900×750×900	245	300
AGSD-7.5	1.2	1.04	0.9	0.8	7.5	0.09	G1	69	900×750×900	250	300
AGSD-11	1.79	1.58	1.32	1.17	11	0.18	G1	70	950×800×1290	370	300
AGSD-15	2.4	2.15	1.84	1.66	15	0.18	G1	70	950×800×1290	480	300
AGSD-18.5	3	2.9	2.52	2.02	18.5	0.37	G1	71	1250×960×1300	730	300
AGSD-22	3.51	3.16	2.71	2.45	22	0.37	G1	71	1250×960×1300	750	300

Note:

1. OEM&ODM service,220-450V/3/50-60Hz single& dual voltage customization accepted;

2. VSD&PM VSD type (optional).

3.2 years warranty for compressor, 5 years warranty for air end

4. ISO, CE,TUV, GA, SGS certificates

Tank-mounted compressor AGSD-E series

Tank mounted air screw compressor

The AGSD integrated compressor uses EVO series German main engine compressor

The features of EVO air end:

Advantages of LGSD Series Screw Compressor:

1. World-leading Made in Germany Rotorcomp screw air end in 5 years warranty.

2. Extraordinary cooling system, 20-30% cooling performance than the old models, and friendly to do maintain job to cooler and cooling fan.

3. Advanced Intelligent colorful touchable control system for simple& easy operation.

4. Higher efficient energy-saving motor in SF.1.2.IP55, IE3 CE&MEPS to increase 15% efficiency.

5. Unique driving guard system to increase the lifespan of driving system.

6. The patented OPTI belt transmission, this unique design to ensure the belt tensioning force by the weight of the motor and start Torque, the design service life is up to 25,000 hours, transmission efficiency can be as high as above 98%.

7. Pick-up French Schneider white-color high-end contractor to keep more durable in extreme environment.

8. Select high-end air dryer and line filters reach TUV,CE standards to keep excellent purity of discharging air, reach 0.001ppm.

Note:
