High operation reliability – designed for industrial applications and continuous operation
Includes all advantages of our built-in NK-EVO® technology, ensuring our OEM partners benefit from:
No leakages due to reduced piping and connections as well as sealing with O-rings (Viton®)
Optimized compact design with very low space requirements
Simplified service and maintenance as all components are easily accessible from one side without special tools
Reduced engineering, manufacturing and logistics costs for your compressor package compared to conventional compressor systems with an air end and separate components
Each compact unit is tested as a complete system before leaving our factory

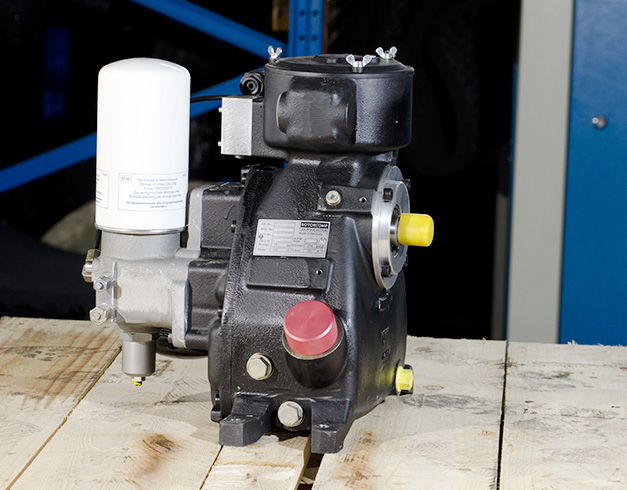

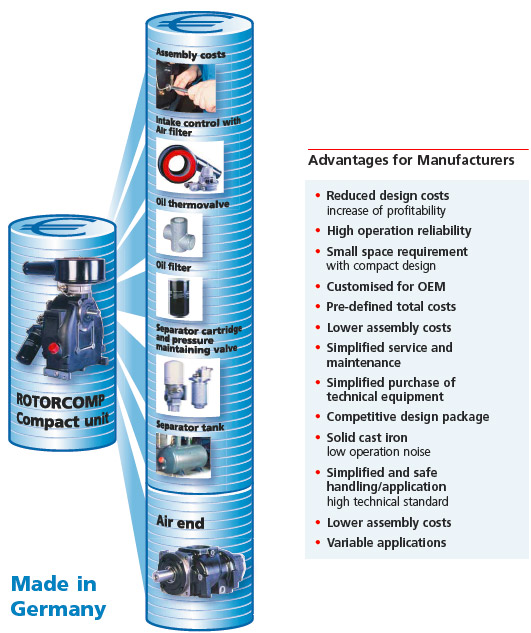

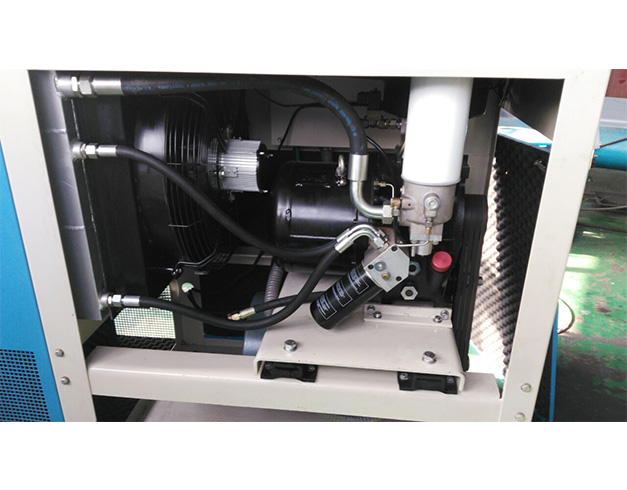

The following components are integrated into each compact unit: NK-EVO® oil-injected air end with ROLLING PROFILE®, intake valve with control unit and air filter, oil reservoir and oil
separation system with coalescing cartridge(s), oil filter and oil thermostat valve, minimum pressure valve and non return valve.
1. Ultimate efficiency and reduced noise through
2. High volumetric output due to
3. Reduced internal leakage
4. Thermally optimized oil injection system
5. Improved suction port efficiency giving reduced internal losses
6. Optimized torque characteristics and reduced internal friction
7. Improved outlet port with lower pressure losses
8. Reduced noise and low vibration due to
9. Smooth rolling of the rotors with new ROLLING PROFILE®
10. Optimized outlet port
| Mode | Capacity m3/min | Power/ | Weight/ | Noise/ | Dimension/ | ||||
| 7 bar | 8 bar | 10 bar | 13 bar | 15 bar | (KW) | Kg | dB（A） | L×W×H(mm) | |
| AGFD-NK7.5 * | 1.3 | 1.2 | 1 | 0.75 | 0.6 | 7.5 | 290 | 65±3 | 900×650×1290 |
| AGFD-NK11 * | 1.7 | 1.6 | 1.5 | 1.15 | 0.9 | 11 | 350 | 65±3 | 900×650×1290 |
| AGFD-NK15 * | 2.25 | 2.05 | 1.85 | 1.5 | 1.2 | 15 | 360 | 67±3 | 900×650×1290 |
| AGFD-NK18.5* | 3.1 | 2.9 | 2.55 | 2.1 | 1.8 | 18.5 | 565 | 70±3 | 790×1360×1220 |
| AGFD-NK22* | 3.6 | 3.4 | 3 | 2.5 | 2.3 | 22 | 600 | 70±3 | 790×1360×1220 |
| AGFD-NK30* | 5.2 | 4.9 | 4.4 | 3.7 | 3 | 30 | 810 | 72±3 | 930×1660×1530 |
| AGFD-NK37* | 6.3 | 6 | 5.4 | 4.7 | 4.1 | 37 | 830 | 72±3 | 930×1660×1530 |
1. OEM&ODM service,220-450V/3/50-60Hz single& dual voltage customization accepted;
2. VSD&PM VSD type (optional);
3. 2 years warranty for compressor, 5 years warranty for air end;
4. ISO, CE,TUV, GA, SGS certificates.
